William Åström

View customisation in PyroCMS

Being able to customise views within a control panel is essential to make sure it is easy to use for your clients. With PyroCMS this is easy, flexible and very powerful. One of the reason we love working with it!

Create the company module

For this example, we are going to create a company module where we are able to add employees by using a repeater. For this to work, we need to create our fields and streams. In short, this is what needs to be done :

  • Create addon php artisan make:addon pixney.module.company
  • Run composer dump composer dump
  • Create base stream php artisan make:stream companies pixney.module.company
  • Create employees stream php artisan make:stream employees pixney.module.company

When done, the following files are created for you:

Creating necessary fields

Let's begin our journey by specifying what fields our module needs within 2018_02_21_113547_pixney.module.company__create_company_fields.php.

<?php

use Anomaly\Streams\Platform\Database\Migration\Migration;

class PixneyModuleCompanyCreateCompanyFields extends Migration
{
    /**
     * The addon fields.
     *
     * @var array
     */
    protected $fields = [
        'name'  => 'anomaly.field_type.text',
        'slug'  => [
            'type'   => 'anomaly.field_type.slug',
            'config' => [
                'slugify' => 'name',
                'type'    => '_'
            ],
        ],
        'email'                    => 'anomaly.field_type.email',
        'phone'                    => 'anomaly.field_type.text',
        'note'                     => 'anomaly.field_type.textarea',
        'employees'                => [
            'type'   => 'anomaly.field_type.repeater',
            'config' => [
                'related'        => \Pixney\CompanyModule\Employee\EmployeeModel::class,
                'add_row'        => 'anomaly.field_type.repeater::button.add_row',
            ]
        ]
    ];
}

Assign employees to the companies stream

For our company stream (table) we would like to use the following fields (columns): name , slug and employee (repeater with a multiple relationship to our employees).

<?php

use Anomaly\Streams\Platform\Database\Migration\Migration;

class PixneyModuleCompanyCreateCompaniesStream extends Migration
{
    /**
     * The stream definition.
     *
     * @var array
     */
    protected $stream = [
        'slug'         => 'companies',
        'title_column' => 'name',
        'translatable' => false,
        'trashable'    => false,
        'searchable'   => false,
        'sortable'     => false,
    ];

    /**
     * The stream assignments.
     *
     * @var array
     */
    protected $assignments = [
        'name' => [
            'required'     => true,
        ],
        'slug' => [
            'unique'   => true,
            'required' => true,
        ],
        'employees'
    ];
}

Assign fields to our employee stream

Our employee stream needs the following fields : name, email, phone, note and slug.

<?php

use Anomaly\Streams\Platform\Database\Migration\Migration;

class PixneyModuleCompanyCreateEmployeesStream extends Migration
{
    /**
     * The stream definition.
     *
     * @var array
     */
    protected $stream = [
        'slug'          => 'employees',
         'title_column' => 'name',
         'translatable' => false,
         'trashable'    => false,
         'searchable'   => false,
         'sortable'     => false,
    ];

    /**
     * The stream assignments.
     *
     * @var array
     */
    protected $assignments = [
        'name' => [
            'required'     => true,
        ],
        'email' => [
            'unique'   => true,
            'required' => true,
        ],
        'phone',
        'note'
    ];
}

Install our addon

To be able to access our module from within the control panel we need to install it. You got basically two options:

  • CLI : php artisan module:install company
  • Control Panel : You are able to install the module within the control panel and the addon section.

Let's remove employee from our control panel

In our example, we do not want employees to appear in the side nav. We are able to remove that link by deleting the reference to employees within sections in: pixney/company-module/src/CompanyModule.php :

<?php

namespace Pixney\CompanyModule;

use Anomaly\Streams\Platform\Addon\Module\Module;

class CompanyModule extends Module
{
    /**
     * The navigation display flag.
     *
     * @var bool
     */
    protected $navigation = true;

    /**
     * The addon icon.
     *
     * @var string
     */
    protected $icon = 'fa fa-puzzle-piece';

    /**
     * The module sections.
     *
     * @var array
     */
    protected $sections = [
        'companies' => [
            'buttons' => [
                'new_company',
            ],
        ]
    ];
}

Customising the repeater layout

Access the companies through the link on the left, the view appearing when you try to add a new employee is what we are to change. Instead of having stacked fields on top of each other, we creating a two columns view with the textarea on the right side of the other fields.

A repeater view is loaded both through a normal http request, and an ajax request when adding records.

Ajax request view

To be able to edit this view, we need to define our view in a new form builder. We will first use the newRepeaterFieldTypeFormBuilder hook on our employee model telling it to use the new builder:

<?php

namespace Pixney\CompanyModule\Employee;

use Pixney\CompanyModule\Employee\Contract\EmployeeInterface;
use Anomaly\Streams\Platform\Model\Company\CompanyEmployeesEntryModel;

class EmployeeModel extends CompanyEmployeesEntryModel implements EmployeeInterface
{
    public function newRepeaterFieldTypeFormBuilder()
    {
        return app(\Pixney\CompanyModule\Employee\Support\RepeaterFieldType\FormBuilder::class);
    }
}

Create the form builder:

Within our form builder, we will specify what wrapper view to use:

<?php

namespace Pixney\CompanyModule\Employee\Support\RepeaterFieldType;

class FormBuilder extends \Anomaly\Streams\Platform\Ui\Form\FormBuilder
{
    protected $options    = [
        'wrapper_view' => 'pixney.module.company::employee/repeater/wrapper'
    ];
}

Create the wrapper

{% block content %}

    {% for style in asset_styles("styles.css") %}
        {{ style|raw }}
    {% endfor %}

    {% include "anomaly.field_type.repeater::partials/controls" %}

    <div class="clearfix"></div>

    {% include "anomaly.field_type.repeater::partials/fields" %}

    {% include "pixney.module.company::employee/repeater/body" %}

    {% for script in asset_scripts("scripts.js") %}
        {{ script|raw }}
    {% endfor %}

{% endblock %}

Create our form body

Since our admin theme is using bootstrap 3, that's the formatting we are applying here.

<div class="repeater-body">
    <div class="row">
        <div class="col-sm-12">
            <div class="row">
                <div class="col-sm-24">
                    {{ form.fields.name|raw }}
                </div>
            </div>
            <div class="row">
                <div class="col-sm-24">
                    {{ form.fields.email|raw }}
                </div>
            </div>
            <div class="row">
                <div class="col-sm-24">
                    {{ form.fields.phone|raw }}
                </div>
            </div>
        </div>
        <div class="col-sm-12">
            {{ form.fields.note|raw }}
        </div>
    </div>
</div>

A final step

After completing the steps above and trying to add a new emplyee you will will see the new layout. However, if you save it the old view will appear on reload again.

A final step left to do!

Create our input view

The other view we need to define is the input view:

{{ asset_add('styles.css', 'anomaly.field_type.repeater::scss/repeater.scss') }}
{{ asset_add("scripts.js", "anomaly.field_type.repeater::js/cookie.min.js") }}
{{ asset_add('scripts.js', 'anomaly.field_type.repeater::js/input.js') }}
{{ asset_add("scripts.js", "streams::js/table/jquery-sortable.js") }}
{% set instance = str_random() %}

<div {{
    html_attributes(field_type.attributes)
    }} data-instance="{{ instance }}">
    <div class="repeater-list">

        {% for form in field_type.forms %}
            <div class="repeater-item" style="background:#fff;">

                {% include "anomaly.field_type.repeater::partials/controls" %}

                {% include "anomaly.field_type.repeater::partials/fields" %}

                {% include "pixney.module.company::employee/repeater/body" %}

            </div>

        {% endfor %}
    </div>

    {% if not field_type.readonly %}
        <div class="repeater-controls aba">

            <a href="{{ url('repeater-field_type/form/' ~ field_type.id() ~ '?prefix=' ~ field_type.prefix) }}" class="add-row btn btn-sm btn-success" data-instance="{{ instance }}" data-loading="{{ trans('anomaly.field_type.repeater::message.loading') }}">
                {{ trans(field_type.config.add_row ?: 'anomaly.field_type.repeater::button.add_row') }}
            </a>

            <a href="#" class="btn btn-sm btn-info" data-select="all">
                {{ trans('anomaly.field_type.repeater::button.select_all') }}
            </a>

        </div>
    {% endif %}

</div>

Define our input view

We need to make sure our parent form builder Pixney\CompanyModule\Company\Form\CompanyFormBuilder renders this view for our employee field:

<?php

namespace Pixney\CompanyModule\Company\Form;

use Anomaly\Streams\Platform\Ui\Form\FormBuilder;

class CompanyFormBuilder extends FormBuilder
{
    /**
     * The form fields.
     *
     * @var array|string
     */
    protected $fields = [
        '*',
        'employees' => [
            'input_view' => 'pixney.module.company::employee/repeater/input'
        ],
    ];

    /**
     * Additional validation rules.
     *
     * @var array|string
     */
    protected $rules = [];

    /**
     * Fields to skip.
     *
     * @var array|string
     */
    protected $skips = [];

    /**
     * The form actions.
     *
     * @var array|string
     */
    protected $actions = [];

    /**
     * The form buttons.
     *
     * @var array|string
     */
    protected $buttons = [
        'cancel',
    ];

    /**
     * The form options.
     *
     * @var array
     */
    protected $options = [];

    /**
     * The form sections.
     *
     * @var array
     */
    protected $sections = [];

    /**
     * The form assets.
     *
     * @var array
     */
    protected $assets = [];
}

You are done!

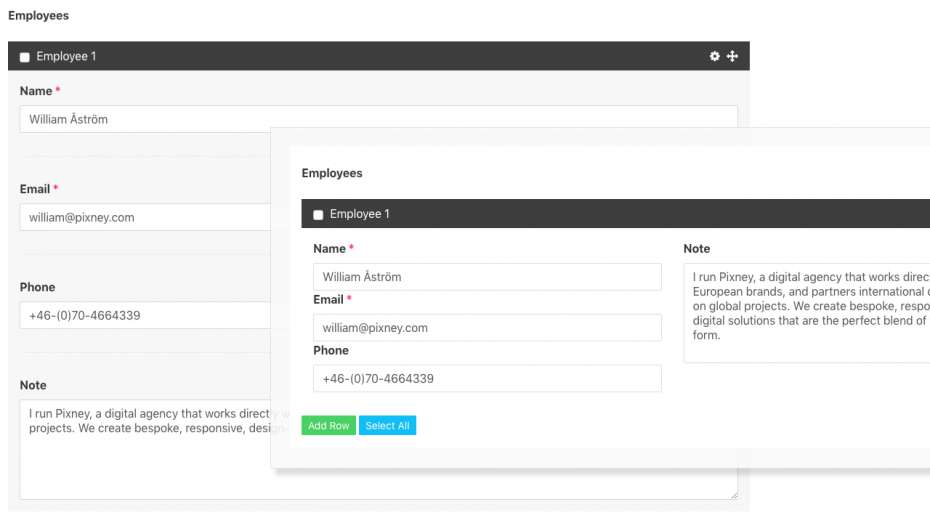

We have achieved our goal with customising the repeater layout. The steps to customise grid views are almost the same.

By adding your own stylesheets and html markup, you are able to style this to the end of time. Below is a view are working on for our pro bono project - a homeless cat administration system and built in webpage.
